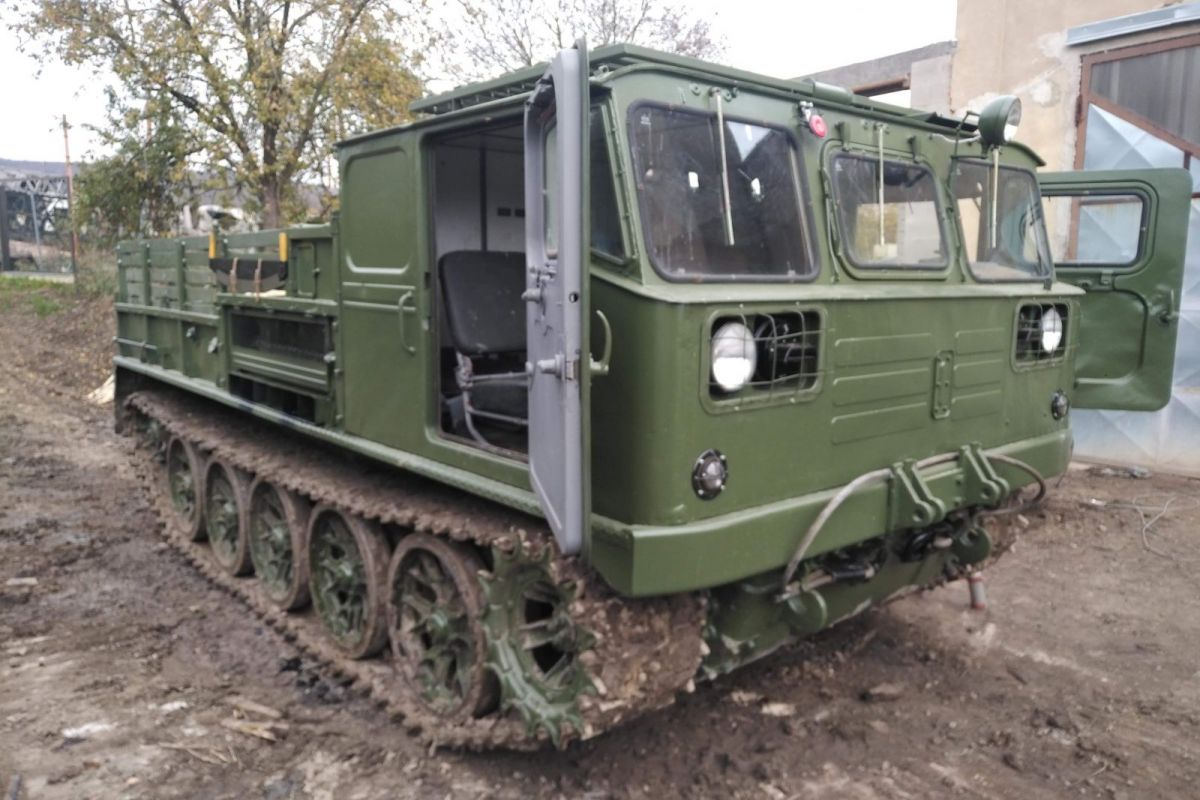

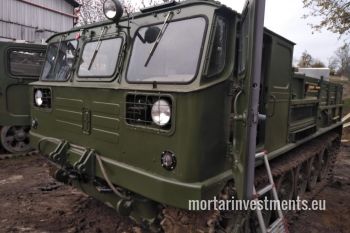

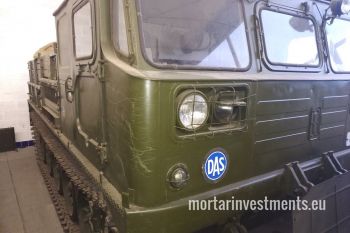

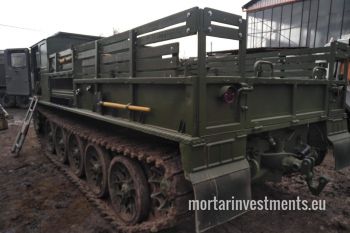

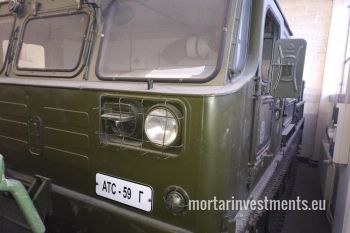

ATS-59G

Price starting at:
€16,000

In stock: 4 units

General

Produced
Notable for Good track tractor

Engine

Type A-650
Fuel Diesel
Power 300 HP
Maximum Torque 220kw
Displacement

Variants

ATS-59G, ATS-59

Dimensions

Curb Weight 13,750 T
Wheelbase
Crew 2+4
Height 2,620 m
Length 6,280 m
Width 2,780 m
Ground Clearance 0,420 m

Policy

Driving Licence Specific
Can be transported in a container?
Requires an Export Licence?

Driving capacities

Fuel Capacity 240 l
Fuel Consumption 42 l/100 km
Speed on Road 45 km / h
Speed Cross-country 20 km / h
Payload 3 T

Transmission

Type

Other

Voltage 24v
Tyre Size

Description

Groovy tracked Soviet military tractor ATS-59G for sale. Buy a top-of-the-line utility vehicle. NATO counterparts: Bandvagn 206, Bandvagn 202. Buy a Finnish military tractor Sisu Nasu here.

ATS-59G - Soviet medium tracked high-speed artillery tractor, model 1969. Intended for towing trailers, transporting people and various goods on all types of roads and off-road.

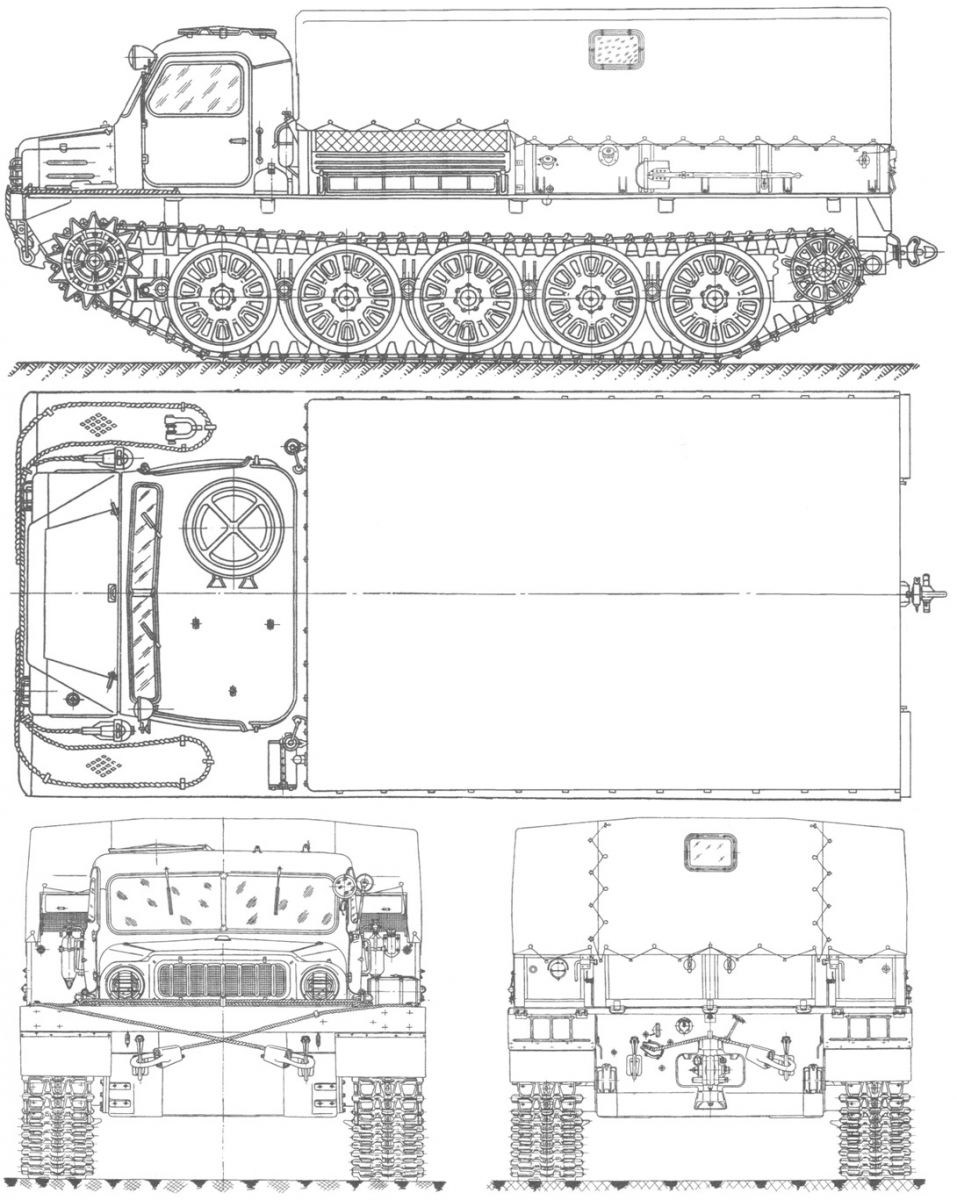

ATS-59 blueprint

ATS-59: blueprint

History


Designed by SKB Kurgan Engineering Plant. Adopted in 1970. In connection with the conversion of KMZ to the production of BMP-1, production was transferred to Poland.

In the Soviet army, they were used in the 1970-1980s as tractors for towing heavy guns, for example, the 130-mm M-46 gun. Since the mid-1970s, in connection with the reduction of towed artillery in the army, it began to be massively transferred to the national economy.

Development

The AT-S had proven itself as a chain hoist for heavy guns and radio measuring stations due to its good off-road capability and high speed. It was revised in the late 1950s. While the diesel engine was given more power, the designers changed the chassis and superstructures. The vehicle was developed in the Kurgan machine factory (Russian Курганский машиностроительный завод Kurganski Maschinostroitelny Sawod), where series production also began in 1959. With the start of series production of the BMP-1 in 1966, the production of the ATS-59G was relocated to Gliwice, Poland.

ATS-59G drawing

ATS-59G drawing

Construction


Proven assemblies from Soviet vehicle construction were used for the ATS-59. The engine, power transmission and essential parts of the drive came from the T-54 tank. The well-known throttled version of the twelve-cylinder diesel engine was used as the engine. The engine, now referred to as the А-650, produced 300 hp (221 kW) at 2600 rpm. The drive is a roller drive with five torsion bar springs on each side. The drive wheels are at the front, the idlers, which also serve to tension the chain, are at the rear. The track chains have a width of 525 mm. Due to the better weight distribution, the engine was installed behind the cabin, below the loading area and partially protrudes into it, which makes access to the engine difficult during maintenance and repair work and limits the loading volume. Change and steering gear sit in front of the engine.

The maximum ground pressure is 0.52 kg / cm2. The climbing ability, when loaded without a trailer, is 35%, the ground clearance is 425 mm. The vehicle can drive through waters up to 1.5 m deep without any preparation and overcome obstacles up to 1.1 m high. The payload is 4 t, the trailer load 14 t.

The ATS-59 has a cable winch driven directly by the motor with a tensile load of 15 t.

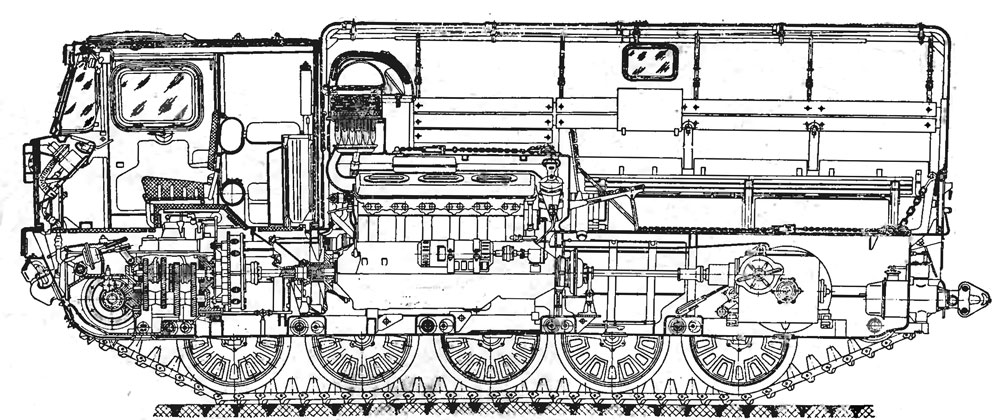

ATS-59G cross-section

ATS-59G cross-section

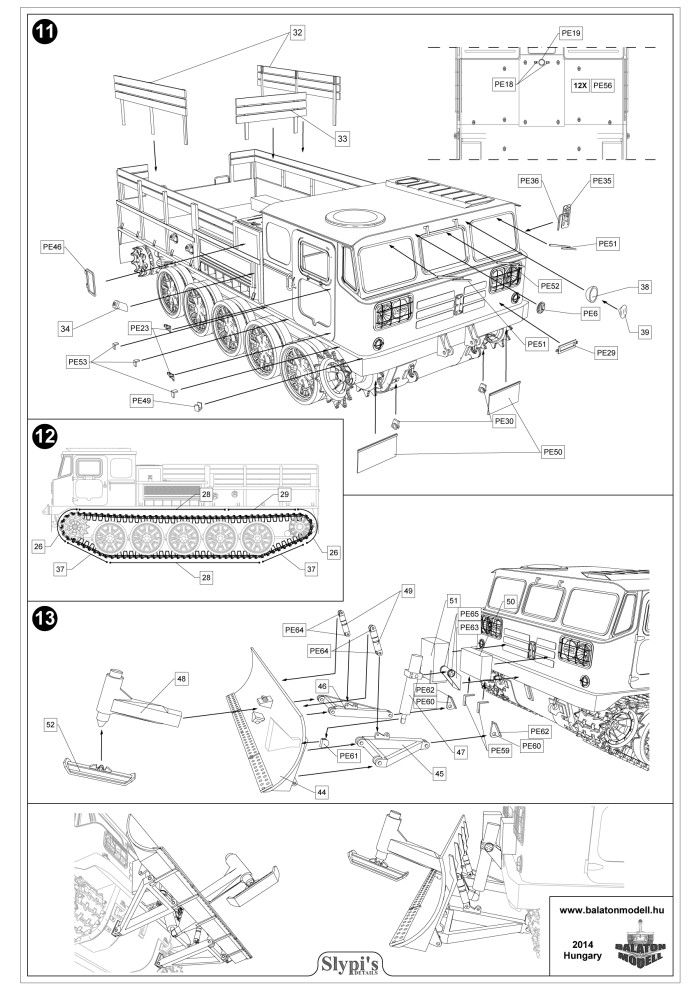

ATS-59G model

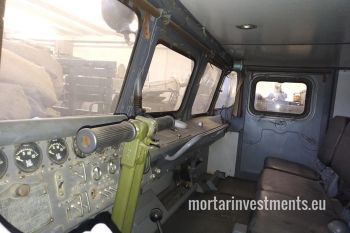

The main disadvantage of the ATS-59 was the too-small cabin, which normally made it necessary to transport people on the loading area. The further development ATS-59G received a larger cab with a total of seven seats arranged in two rows. To protect against radioactive, chemical or biological (bacteriological) contaminated outside air, the case was equipped with an overpressure filter ventilation system. The improved A-650-G was installed as the engine. Otherwise the vehicle remained unchanged.

Use


The ATS-59 was mainly used as an artillery vehicle. In the Soviet Army, he pulled the 130 mm M-46 cannon and the 152 mm calibre howitzer. They were also used as a towing vehicle for the launch pad of the S-75 anti-aircraft missile system or the P-37 radar station. The vehicle was also delivered to other armies that used the appropriate Soviet weapon systems. The National People's Army of the GDR also procured ATS-59 and used it as an artillery vehicle until the end of the 1970s. Unneeded vehicles were given to agriculture, where they could be used better than conventional tractors on difficult soils due to the high tensile load and the low soil pressure.

Specifications



  • The mass of the transported freight, kg: 2700-3000
  • Gross trailer weight, kg: 8000-14000
  • The mass of the equipped tractor, kg: 13750
  • Engine: A-650 (B-2 family)
  • Power at 1700 rpm, kW (hp): 300 (with power limiter)
  • Diesel fuel
  • Maximum speed km / h: 45
  • Fuel consumption at a speed of 40 km / h, l / 100 km: 156
  • Equipped with a cabin with anti-radiation protection (the creation of excess pressure-air pressure). Consumed engine oil - MT-16p.

Modifications


Military



  • ATS-59 (object 650) - the first option, with a two-seater small cabin, the rest of the cars are identical. ATS-59 was developed in 1959 and was produced until 1967.
  • ATS-59G (object 668).
  • RL-21 - Egyptian MLRS, is a 122-mm launcher for the production of the DPRK on the chassis of the Soviet tractor ATS-59G.
  • STK-59GMS - welding and technological complex on the ATS-59G chassis


Civil



  • GTS-5-40 - a fire tank for 5000 litres, equipped with a fire pump PN-40UV, the production of which from ATS-59 was mastered at OAO Pozhmashina (Torzhok)
  • TM-96 - a skidder with a carrying capacity of 3000 kg, the production of which from the ATS-59G was mastered by the Kharkiv Automobile Repair Plant



In stock

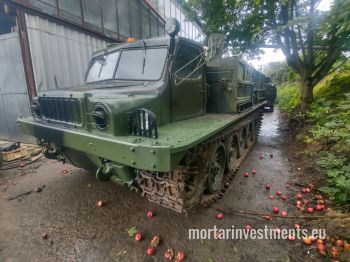

ATS-59G very low mileage

Price on demand

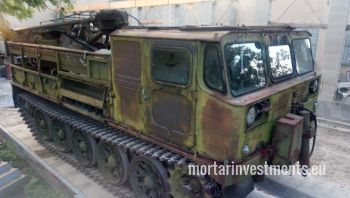

ATS-59 (the old model)
