GAZ-66

Price starting at:
€6,000

In stock: 3 units

Related stories:

GAZ-66 diesel

General

Produced 1964-1999
Notable for compact 4x4 truck

Engine

Type V8 ZMZ 513
Fuel gasoline
Power 92 kW
Maximum Torque 294 Nm
Displacement

Variants

GAZ-66A, GAZ-66B

Dimensions

Curb Weight 5770 Kg
Wheelbase 3.3m
Crew 2
Height 2,440 m
Length 5,655 m
Width 2,342 m
Ground Clearance 0,310 m

Policy

Driving Licence Truck
Can be transported in a container?
Requires an Export Licence?

Driving capacities

Fuel Capacity 210 L
Fuel Consumption 24 L/100 km
Speed on Road 95 km/h
Speed Cross-country
Payload 2000 Kg

Transmission

Type Manual

Other

Voltage 12 V
Tyre Size 12.00-18

Description

GAZ-66 4x4 Russian camper trucks for sale. Buy a light Soviet army truck.

Light and easy. Engine type very similar to BRDM-2.

Czech classic car road-registration available.

gaz-66 shelter box dimensions

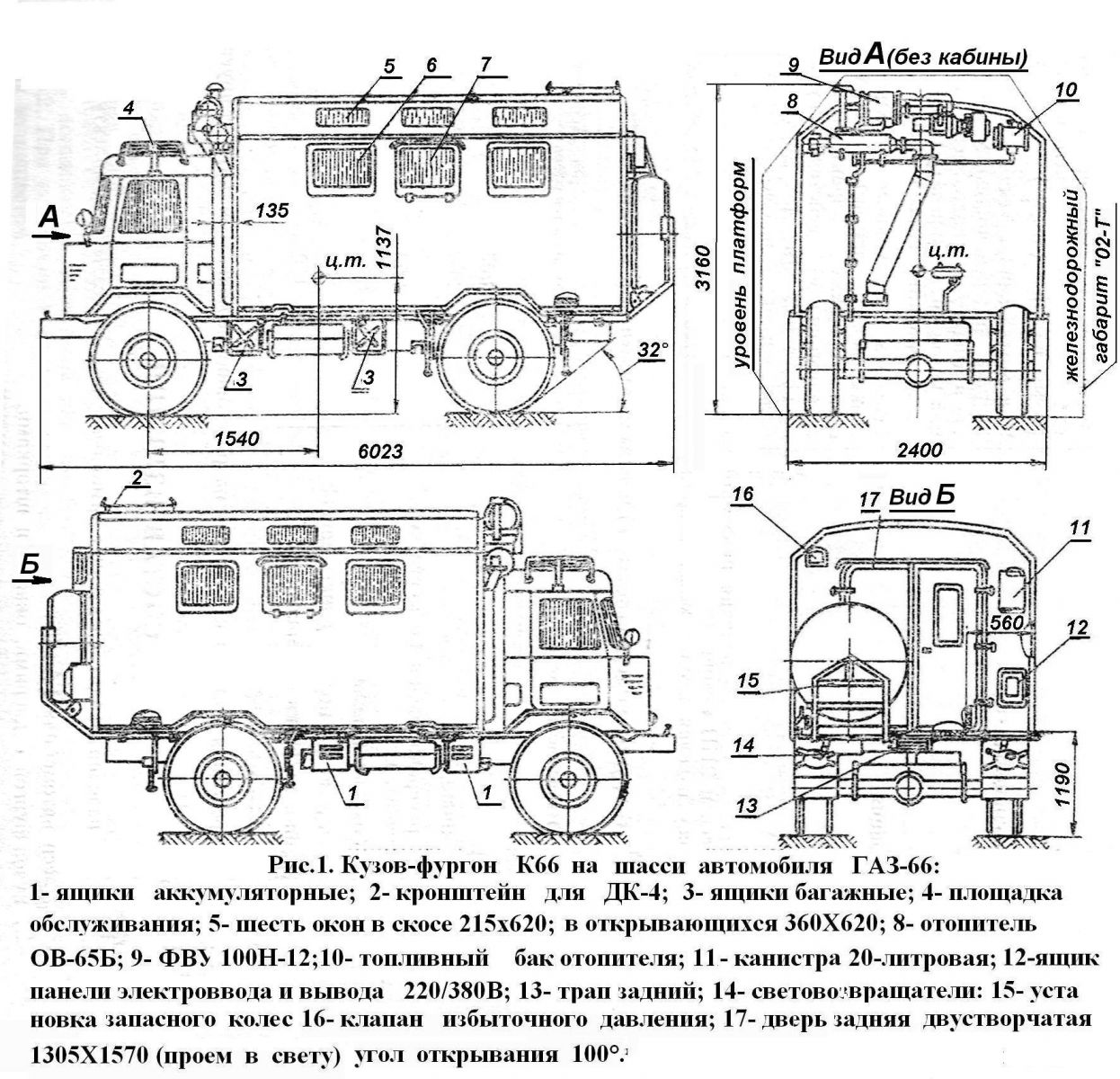

Larger GAZ-66 KUNG shelter: dimensions

The GAZ-66 (Russian ГАЗ-66) is an all-wheel-drive light truck of the Soviet / Russian vehicle manufacturer Gorkowski Awtomobilny Sawod (GAZ). This truck is used in many countries in the former Eastern Bloc. The vehicle is also nicknamed "schischiga" (шишига) and "schescherik" (шешерик). The occasionally used German transcription is GAS-66. GAZ-66 stands close to ZIL-131, to the URAL branch (375D, 4320) and to KAMAZ-4310



Vehicle history


Propshaft and rear-axle with differential


The first efforts to replace the pre-war construction of the GAZ-63 were made in Gorki in the early 1960s. Through the unsuccessful intermediate step of the GAZ-62, of which only prototypes were built, the GAZ-66 was created, which had some major changes compared to its predecessor. Lowering the vehicle's centre of gravity and a wider track have improved the terrain properties. It was one of the first Soviet trucks with a V8 petrol engine and power steering. In addition, the spare wheel holder was placed behind the cab in order not to reduce the ground clearance of the vehicle with a spare wheel attached under the truck. The driver's cab can be folded forward completely for repairs in the engine compartment, which was rather unusual in the Soviet Union at the time. The first prototypes were assembled in November 1963, and series production started on July 1, 1964.

Vehicles manufactured until 1967 showed even smaller differences in the cab compared to the later examples. In 1969 the truck was awarded the State Seal of Quality of the USSR. In 1981, GAZ revised the truck's lighting system. In early 1985, the vehicles were modernized and equipped with a slightly stronger gasoline engine (now 120 HP instead of 115 HP).

The vehicle continued to be manufactured even after the collapse of the Soviet Union. From 1993 there were models with naturally aspirated and turbodiesel engines from GAZ's own production. Series production was officially discontinued on July 1, 1999 after 35 years, but even after that, even smaller quantities were made to order. A total of 965,941 GAZ-66 trucks were manufactured. The successor was the GAZ-3308.

The National People's Army of the GDR received the truck, but only a few were used for civil purposes, for example for drilling equipment. To date, the GAZ-66 is used in various armies in Eastern Europe. In addition, the vehicle, which is occasionally compared to the German Unimog, is also used in truck trials or for classic car enthusiasts.



Technical specifications


For the basic model GAZ-66 (GAZ-66-01). The data may differ slightly for other model variants and superstructures.

  • Engine: V8 petrol engine
  • Engine type: ZMZ-66
  • Power: 115 hp (85 kW)
  • maximum torque: 284 Nm
  • Displacement: 4254 cm³
  • Tank capacity: 2 × 105 l
  • Consumption: 24 l / 100 km
  • Range: 875 km
  • Transmission: Manual four-speed manual transmission, two-stage off-road reduction
  • Top speed: 90 km / h
  • maximum negotiable slope: 30 °
  • Wading depth: 1 m
  • Drive formula: 4 × 4
  • Tyres: 12.00 R18

Dimensions and weights

  • Length: 5655 mm
  • Width: 2322 mm
  • Height: 2440 mm above the cabin
  • Wheelbase: 3300 mm
  • Front track: 1800 mm
  • Rear track width: 1750 mm
  • Ground clearance: 315 mm
  • Turning circle: 19 m
  • Tire size: 12.00-18 "
  • Empty weight: 3470 kg
  • permissible total weight: 5800 kg
  • Payload: 2000 kg
  • permissible trailer load: 2000 kg

In stock

GAZ-66 high shelter 1200 km

Price on demand
