KRAZ-255

Price starting at:
€6,000

In stock: 3 units

Related stories:

KRAZ-255 maintenance works

General

Produced
Notable for offroad

Engine

Type JaMAZ 238
Fuel Diesel
Power 265 Hp
Maximum Torque 195 kW
Displacement

Variants

KrAZ-255 , KrAZ-255B

Dimensions

Curb Weight 19,775 T
Wheelbase
Crew 3
Height 3,20 m
Length 8,64 m
Width 2,90 m
Ground Clearance 0,36 m

Policy

Driving Licence Truck
Can be transported in a container?
Requires an Export Licence?

Driving capacities

Fuel Capacity 2 x 150L
Fuel Consumption
Speed on Road 76 km / h
Speed Cross-country
Payload 7500 kg

Transmission

Type dry

Other

Voltage 24v
Tyre Size 1300 x 530-533

Description

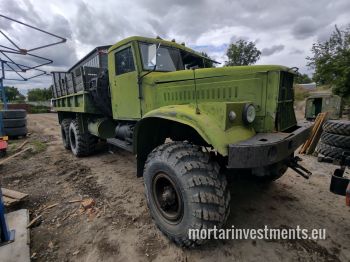

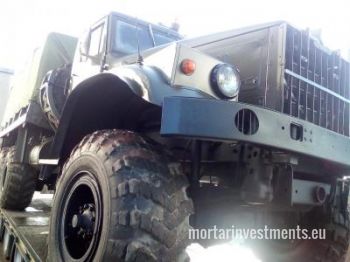

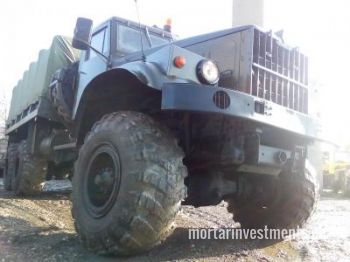

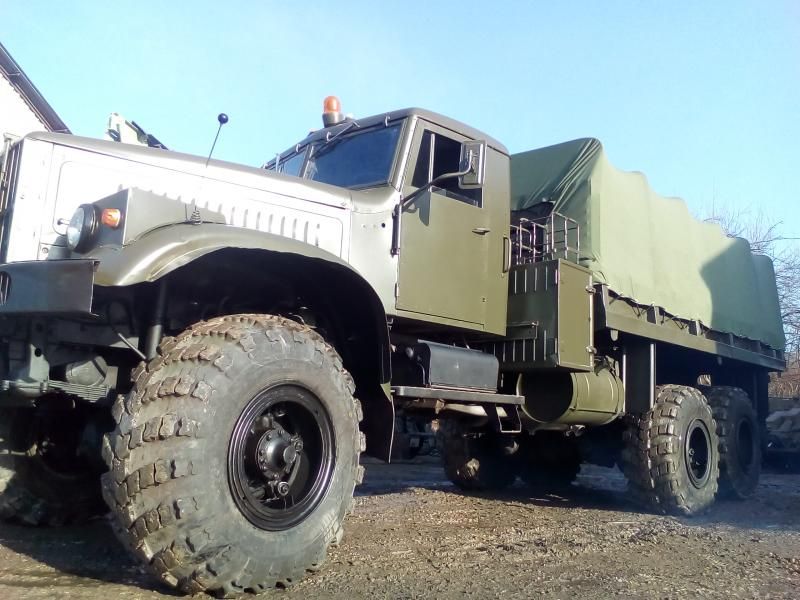

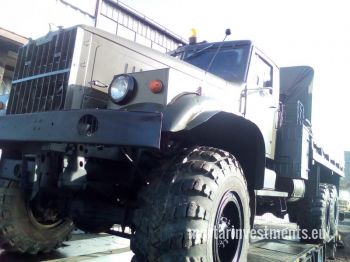

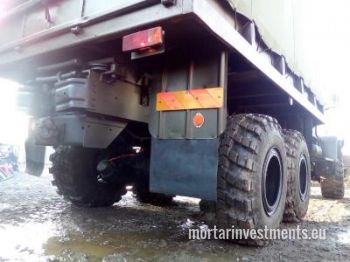

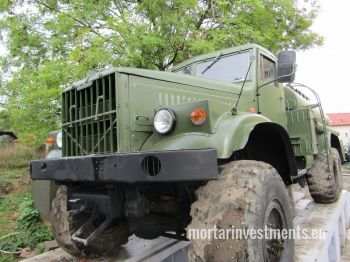

Sensational diesel truck KRAZ-255B for sale. Buy a marvellous vehicle.

Czech classic car road-registration available.



KrAZ-255 (Ukrainian KrAZ-255, KrAS-255) is a heavy Soviet truck with all-wheel drive of the KrAZ vehicle manufacturer, which was produced in series since 1967. The truck has been exploited in many countries of the former Warsaw Pact area and the current CIS states, militarily and in the civilian domain.  Classed above Ural-375D in Soviet nomenclature. Close to ZIL-131 but diesel and over-size.


Vehicle history


The KrAZ-255 is a model following the KrAZ-214, which was produced until 1967. The truck is equipped with a rear-mounted water-cooled single-cylinder wind turbine diesel engine of the YaMZ-238 type, which is also used in many other trucks, tractors and MT-LB transport tanks. The large engine from the Jaroslawski Motor Zawod has 240 hp (176.5 kW) at a capacity of 14,860 cm³. All three axles are locked via a lockable distribution unit on the drive side.

In 1979, all trucks at KrAZ were redesigned, and many changes were introduced. The main improvement is the non-built two-wheel brake system. These models are detected by an additional 1 at the end of the designation.

The series also includes special vehicles such as mobile cranes, tank trucks, military equipment or excavators. The following model of the KrAZ-255 is the KrAZ-260, which was only used until 1993. From 1994, the KrAZ-6322 was introduced, and the KrAZ-260 became established and a similar requirement was in use.







Technical data (for the basic model KrAZ-255B):

  • Engine: single cylinder diesel engine
  • Engine type: YaMZ-238
  • Power: 240 HP (176.5 kW)
  • Torque: 883 Nm
  • Hub: 14,860 cm2
  • Seal: 16.5: 1
  • Consumption: 40 l / 100 km at a constant 40 km / h
  • Tank capacity: 2 × 165 liters
  • Transmission: switching gear, 5 forward gears + 1 reverse gear, 1st gear unsynchronized
  • Gearbox type: JaMZ-236N
  • Landscaping: Two-way unloading gear
  • Maximum speed: 71 km / h
  • Bremsweg from 40 km / h: 20 m
  • maximum loadable height: 58%
  • Watt depth: 1 m
  • Drive formula: 6 × 6

Dimensions and weights

  • Length: 8645 mm
  • Width: 2750 mm
  • Height: 3150 mm over the plane, 2940 mm over the driver's house
  • Wheelbase: 4600 + 1400 mm
  • Track width: 2160 mm front and rear
  • Floor freedom: 360 mm
  • Rotating diameter: 26 m
  • Weight: approx. 11,950 kg
  • Load capacity: 7500 kg
  • Permissible total weight: 19,675 kg
  • Trailer load (street): 30,000 kg
  • Trailer load (load): 10,000 kg
  • Tire size: 1300 × 530-533
