PMM-2 AMPHIBIOUS BRIDGING FERRY

Price on demand

Spare parts for this item available. Please contact us.

Description

PMM-2: Ferry-bridge machine - 2nd model - combat vehicle of the engineering troops (ferry-bridge machine) of the Armed Forces of the USSR .

The ferry-bridge machine PMM-2 is designed for crossing tanks, self-propelled artillery installations and other equipment made on the basis of the tank over water obstacles.

Technical Description:

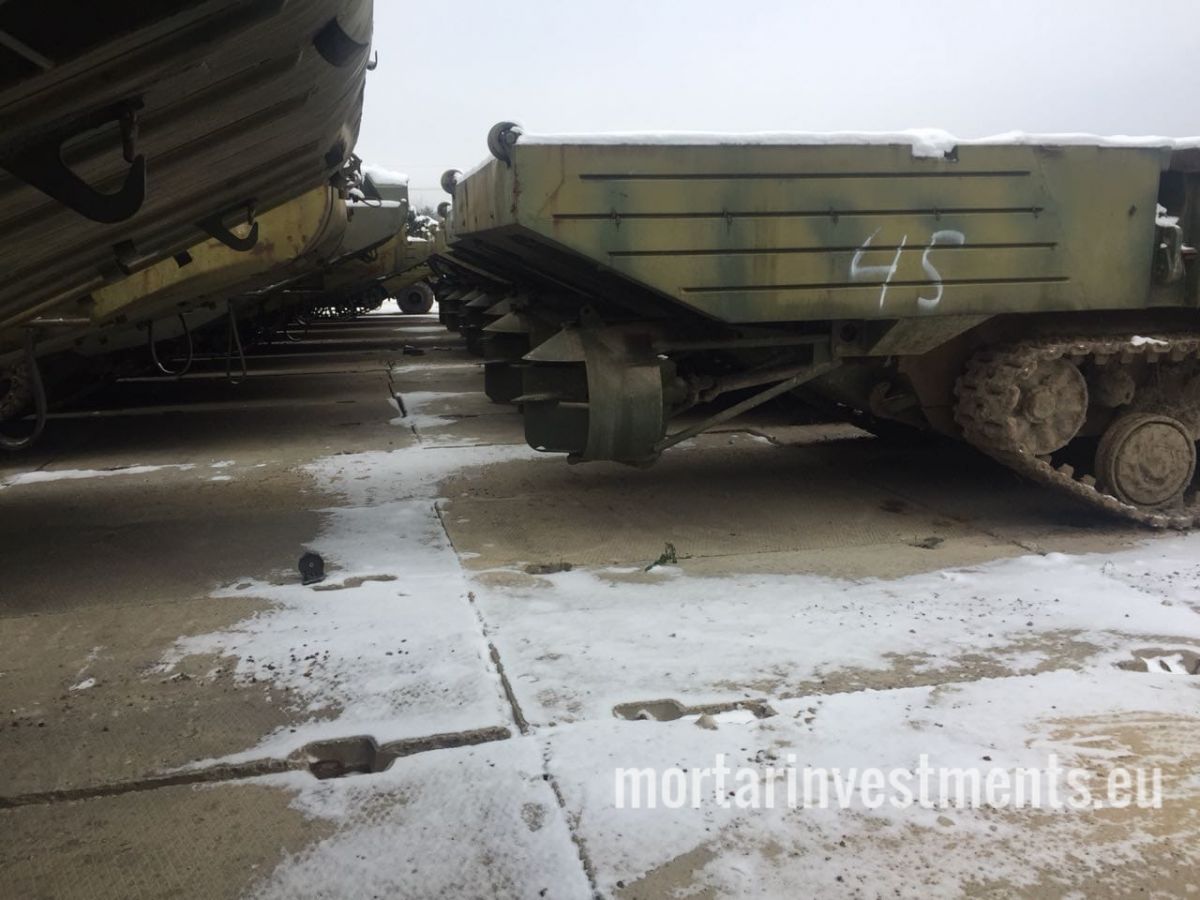

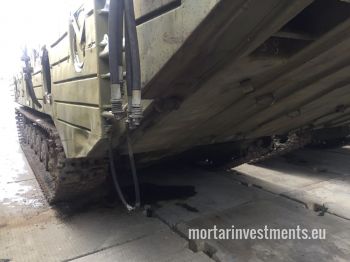

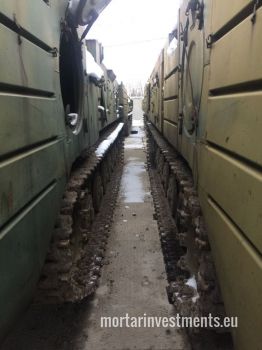

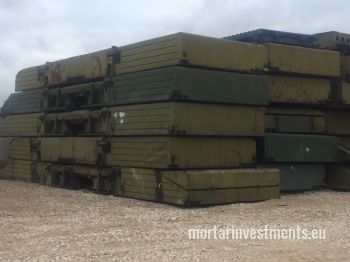

The ferry consists of a caterpillar floating conveyor with a waterproof deck hull, connected to the hinge of two additional pontoons with ramps, docking devices and carriageways.

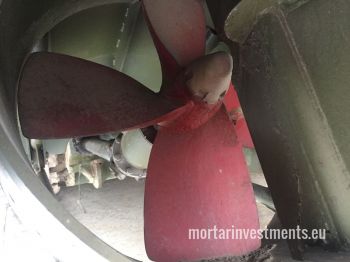

The ferry has a three-seater cabin with a filter-ventilation unit and means of internal and external communication, a navigational propulsion and steering complex, anchor-mooring equipment, a water drainage system, fire fighting equipment, and more.

Specifications:

• ferry weight - 36 tons;
• carrying capacity - 40 tons;
• engine power - 522.5 kW;
• speed on land - 55 km / h;
• cruising range by land - 500 km;
• crew - 3 people;
• length - 13380 mm;
• width - 3300 mm;
• height - 3800 mm;
• the smallest turning radius on land is 2.75 meters;
• diameter of circulation on the water - 28 meters;
• draft on mooring lines - 32.37 kN;
• assembly time - 5 minutes.

Ferry specifications
Of several PMM-2 self-propelled ferries, ferries of increased carrying capacity are assembled:

Ferry from two PMM:

• carrying capacity - 80 tons;

• ferry length - 20 meters;

• assembly time - 8 minutes.

• Ferry from three PMM;

• carrying capacity - 120 tons;

• ferry length - 30 meters;

• assembly time - 10 minutes.
